S1000
  • 4.3-inch touch screen
  • 20000 fingerprint capacity
  • Wi-Fi, GPRS, 3G

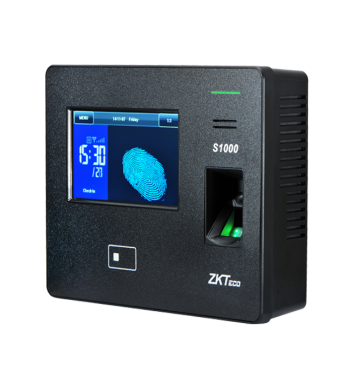

The S1000 is a 4.3-inch touch screen Time Attendance Terminal with elegant design and professional surface treatment.

This device is able to support Wi-Fi, GPRS, 3G, and features 20000 fingerprints capacity, especially applicable for some projects in time attendance.

  • 4.3’’ touch screen is user-friendly and very intuitive
  • Multi-languages
  • 20,000 Fingerprints and 40,000 cards
  • Built-in 2000mAh backup battery extends operation time (optional)
  •  Communication: TCP/IP, USB-host, Optional: Wi-Fi, GPRS, and 3G (WCDMA)
  •  Optional ID, Mifare, HID cards

Fingerpirnt Capacity

20,000

ID Card Capacity

40,000(Optional)

Record Capacity

200,000

User Capacity

20,000

Display

4.3-Inch Touch Screen

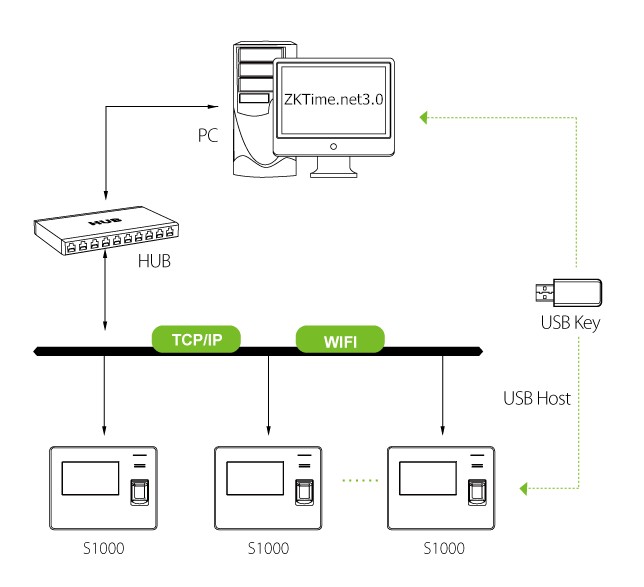

Communication

TCP/IP , USB-host

Standard Functions

Automatic Status Switch, Self-Service Query, Work Code, T9 Input, DST, Scheduled-bell

Optional Function

ID/Mifare/HID, Wi-Fi, GPRS, 3G(WCDMA), ADMS, Backup Battery

Software

ZKTime.Net 3.0

Power Supply

DC12V 3A

Verification Speed

≤ 1 Sec.

Operating Temperature

0-45 °C

Operating Humidity

20%-80%

Dimensions

190.0×147.0×53.8 mm (Length×Width×Thickness)

';

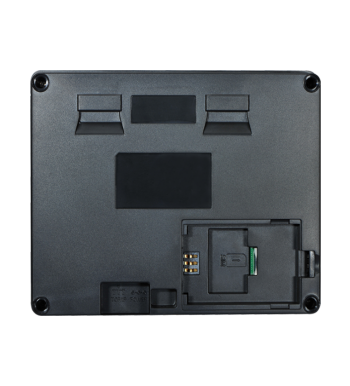

Back Plate

Backup battery (Optional)

Power adapter cable

Power adapter

Screw driver

Screws

S1000

0.67 Mb Data Sheet
2015-09-09

S1000 User Manual

8.65 Mb User Manual
2015-09-09
