SBTL2200 Series
  • High quality electrical components
  • Barriers swing automatically during emergencies
  • Ergonomic design makes card and fingerprint authentication fast & simple for users.

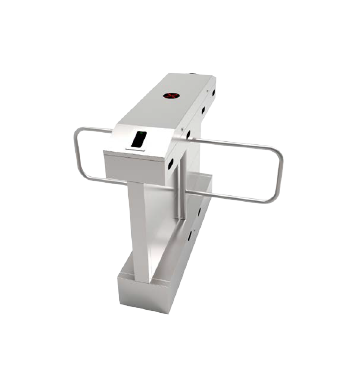

The ZKTeco SBTL2200 swing barrier turnstile for additional lane is an elegant cost-effective entrance control system designed for high-traffic volume. The SBTL2200 series should work together with SBTL2000 series to build multiple lanes.

The SBTL2200 is a swing barrier turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes SBTL2200 highly durable.

SBTL2200 barriers are normally held in a locked position, thus denying access to the secured side. Upon SBTL2200’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers swing automatically, thus allowing users passage to the secured side.

During emergencies the barriers automatically swing, thereby ensuring users FAST unencumbered exit to safety. During power outage, the user can push through the barrier easily to exit to safety.

SBTL2200 provides both security and convenient space, all in a very durable and elegant compact design.

  • SUS304 stainless steel casework ensure long-lasting durability
  • High quality electrical components
  • Barriers swing automatically during emergencies
  • All smooth finish. No exposed screws
  • Ergonomic design makes card and fingerprint authentication fast & simple for users
  • BTL2200 series ships already integrated with our customers’ preference for either card or fingerprint  control reader. This greatly reduces installation time & expense
  • L2200 series and associated access control readers are all factory-tested prior to shipping
  • ZKTeco provides true plug & play turnstiles with the lowest possible total cost of ownership in the industry
  • Simplify structure and connection, easy to maintain
  • LCD display screen shows the current running status,easy operation

Power requirements

AC110V/220v,50/60HZ

Working temperature

-28℃~60℃

Working humidity

5%~80%

Working environment

Indoor/Outdoor

Speed of throughput

RFID

Maximum 42/ minute

Fingerprint

Maximum 35/ minute

Face

Maximum 11/ minute

Vein

Maximum 23/ minute

Lane width(mm)

1,050

Footprint(mm*mm)

1270*1200

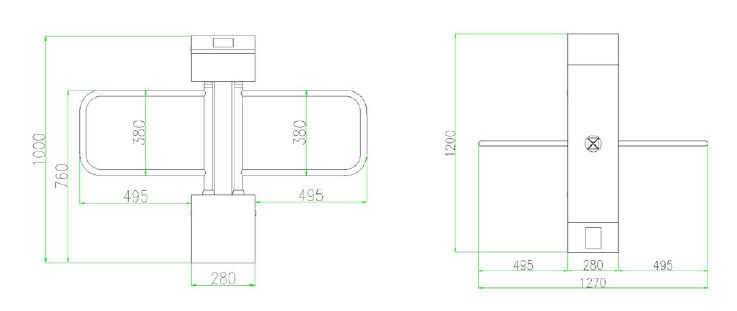

Dimensions(mm)

L=1200,W=280,H=1000

Dimension with packing(mm)

L=1310,W=420,H=1100

Net weight(kg)

68

Weight with packing(kg)

96

LED indicator

Y

Cabinet material

SUS304 Stainless Steel

Lid material

SUS304 Stainless Steel

Barrier material

SUS304 Stainless Steel

Barrier movement

Swing

Emergency mode

Y

Security level

Medium

MCBF

2 million



';
