- Fast spped & accurate
- Easy installation, safe & reliable

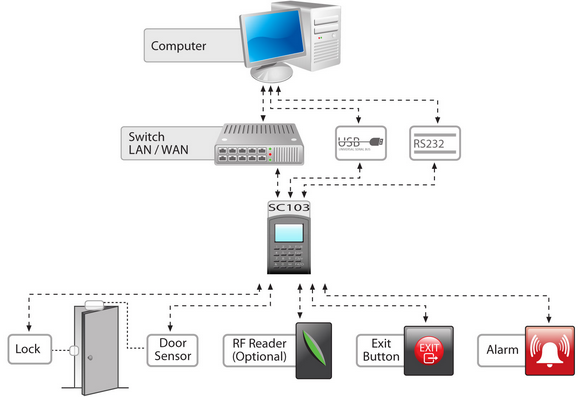

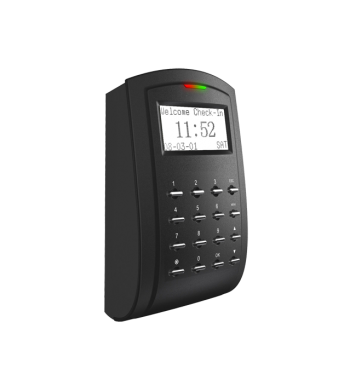

SC103 is made with elegant design and professional surface treatment. The device have lock control, alarm, exit button, door sensor. The wiegand-in interface is used to connect external reader to construct master and slave system. Also the device can be used to connect with a control panel as a reader by wiegand-out interface. The operation can be done on the device through LCD display, also can be done on PC software and upload to the device through TCP/IP, RS232/485 communication. The USB-host is used for data download and upload, including user template and record etc.
SC103 is suitable for house, small office and factory etc.
- Tough casing design
- Easy installation, safe and reliable
- Simple and convenient operation method
- ID card standard, Mifare card optional
- Full door lock control system
- Wiegand out to connect with control panel
- Wiegand in to construct master and slave system
- Audio prompt and LED feedback guide the user to operate
|
ID card Capacity |
30,000 |
|
Transaction Capacity |
50,000 |
|
Communication |
TCP/IP, RS485, USB-Host |
|
Weigand Ports |
Input & Output |
|
Interfaces |
3rd Party locks, door sensor, exit button |
|
Functions |
50 time zones, 5 groups, 10 combinations |
|
Power Supply |
12V DC 3A |
|
Optional |
Mifare、Print Function |
|
Dimensions |
95 x 129 x 48mm |
';
Cables
Diode (FR107)
ID card
Quick Start Guide
RJ45 connector
Screw driver
