SF101
  • Elegant fingerprint sensor
  • The cover protect the fingerprint sensor from dust and water
  • Simple and convenient operation method with full audio prompt

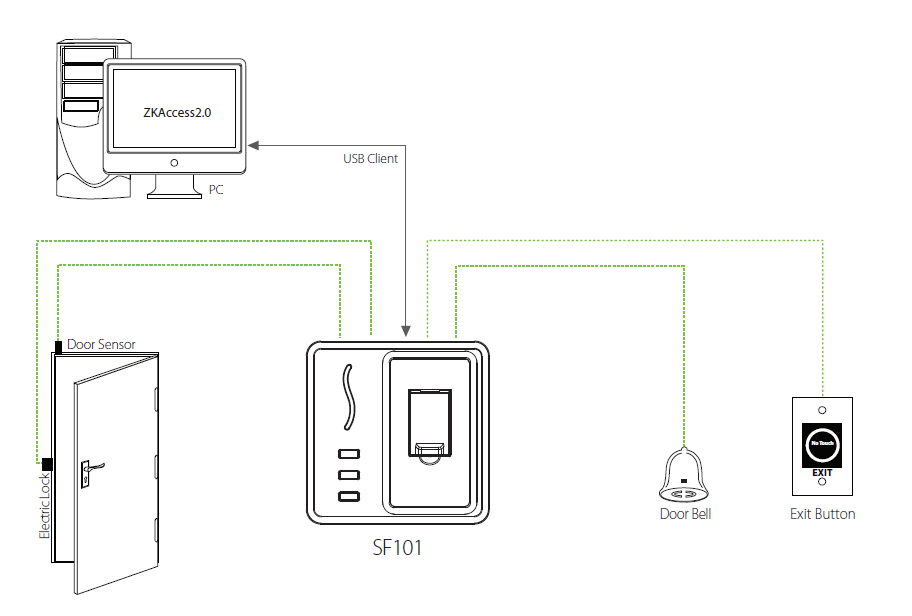

SF101 is a terminal specified for access control. With a robust and elegant metal case design, it is ideal for areas where only simple access control is required without management software. Applicable for small office, house, and factory as a standalone access control system or for airport, data center as a biometric Wiegand reader.

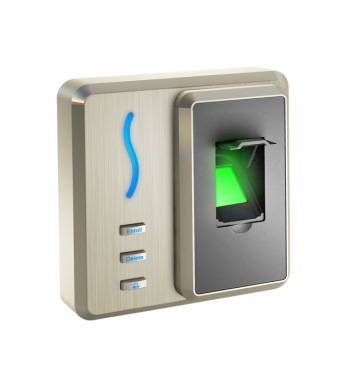

The fingerprint sensor comes with a protective cover. Additionally, integrated in the terminal is a proximity card reader (EM). Easy to use, the SF101 incorporates 3 buttons to register, delete and for a doorbell. SF101 biometric reader is made with Zinc Alloy with elegant design and professional surface treatment. The device can work as a standalone access control or Wiegand reader, comes with audio prompt to improve operation and navigation experience. The cover on the sensor protects the device from dust and water.

  • Simple access control
  • Incorporates high precision ZK Sensor for registering 1 fingerprint per user.
  • Wiegand – Out to connect with external reader.
  • Allows communication with PC through USB / RS-232
  • Relay for door, alarm and push button.
  • Fingerprint registration and access guided by audio prompt.
  • Integrated Proximity Reader (EM) facilitates access by fingerprint or card.
  • Stores up to 30.000 access registrations without PC download.
Fingerprint Capacity 200
ID Card Capacity 100
Log Capacity 30,000
Sensor ZK Optical Sensor
Case Metal case
Relay contacts Door Lock, Alarm, Sensor, Exit button
Proximity ID card
LED Indicator Green / Red
Operating Temperature 0°-45°C
Operating Humidity    20%-80%
Power 12V, DC 3A
Communication Port RS232/485, USB-client
Wiegand Output26bit
Identification <= 2 seconds
Verification < 1 second
Dimensions 120 x 120 x 35 mm (L x W x D)
Weight 0.9 kg
';

Cables

Diode (FR107)

Installation Guide

RJ45 connector

Screw driver

Screws
