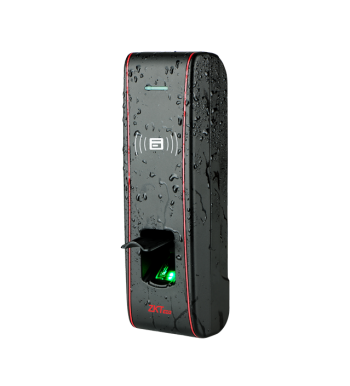

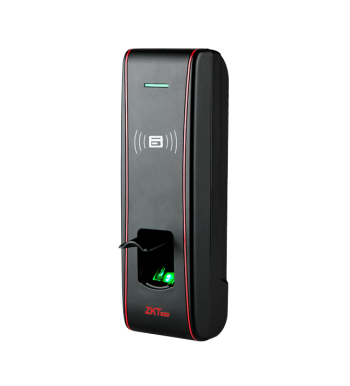

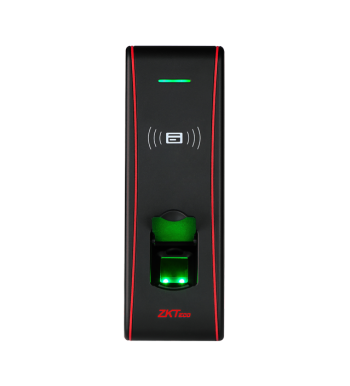

TF1600
  • Resistance to Cold Environment
  • Full Access Control Features
  • Network interface by TCP/IP or RS485

As one of the world’s smallest IP-based fingerprint terminals for access control and time attendance application, TF1600 is specially designed for working in rugged outdoor environment particularly in very low temperature condition.

With built-in resistors, the device will be automatically heated up by itself if its MCU detects the temperature is below working requirement. TF1600 is adapted for operating temperature that ranges from -40 to 45, maximizing the minimum working environment.

Embedded with the latest firmware, TF1600 supports ZKAccess3.5 management SOFTWARE which has versatile features and powerful functions. Though there's no keypad available on TF1600, users can be REGISTERED on the device by the Master Card since it is integrated with 125KHz proximity card reader. It can also complete the enrollment through connecting with ZKAccess3.5 software by Ethernet.

  • IP65 Waterproof
  • Reliable and accurate, with recognition algorithm in less than 1.5 seconds.
  • Pull SDK
  • Store up to 3,000 tracks, 30,000 CARDS and 100,000 transactions
  • Access Control Interface for Electric Lock, Door Sensor, Exit Button, Alarm
  • Wiegand Input and Output

Fingerprint Sensor

Low Temperature Resistance

Algorithm Version

ZKFinger VX10.0

Communication

TCP/IP, RS485

Fingerprint Capacity

3,000 Fingerprints

Card Capacity

30,000 Cards

Log Capacity

100,000 Transactions

RF Card

EM(standard)/Mifare(optional)

Authentication

Finger/Card

Wiegand Signal

Wiegand input&output

Ingress Protection Rate

IP65

Operating Voltage

12VDC 3A

Operating Temperature

-40 °C~45 °C (40°F ~ 113°F)

Size

62.5mm×185mm×41.5mm (W×H×D)



';

Cables

Diode (FR107)

ID card

Installation Guide

RJ45 connector

Screw driver

Screws

TF1600

1.05 Mb Data Sheet
2015-11-09

TF1600 Installation Guide

3.56 Mb Installation Guide
2015-11-09

TF1600 Quick Start Guide

1.51 Mb Quick Start Guide
2015-11-09
