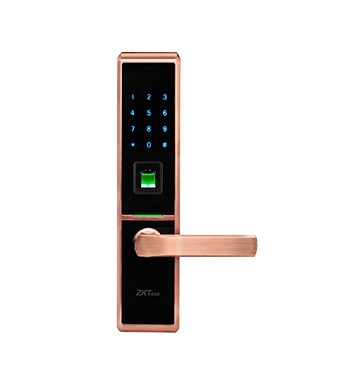

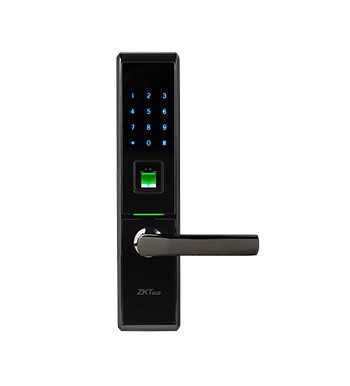

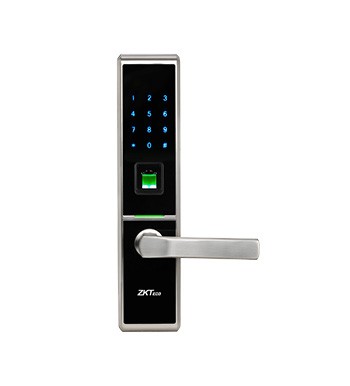

TL100
  • Anti-theft mortise with one match and two deadbolt
  • Fingerprint/Password/Card/Key
  • Wide touch pas screen with tempered glass material
  • Voice guide for easier and more convenient use

TL100 is an anti-theft fingerprint lock with touch keypad, which use robust and safe anti-theft mortise with one latch and two deadbolt, so that you can lock the deadbolt from both inside and outside for more security. It provides various accesses for your convenience - fingerprint/password/card/mechanical key. Meanwhile, TL100 has voice guide function that lets you know the operation status and how to operate each step for easier and more convenient use.

  • New generation fingerprint recognition algorithm
  • Robust and safe anti-theft mortise design
  • Wide touch pad screen with tempered glass material
  • Voice guide for easier and more convenient use
  • With random password for more security
  • Illuminated keypad for easy and quick operation after dark
  • Various access for your convenience - fingerprint/password/card/key
  • Idle handle design to prevent from forcible entry
  • Reversible design to fit for all door open direction
  • Smart alarm for low battery & illegal operation
  • Support passage mode - Normal open
  • User data synchronization
  • Turn handle upward to lock deadbolt
  • External terminals to draw back-up power from a 9V battery
  • Remote open door is optional

Material

Zinc Alloy

Fingerprint Capacity

100

Password Capacity

2

Card Capacity

100

Communication

U-Disk

Options

Remote Control

Operating Temperature

0 ℃ - 45℃

Power Supply

8 x AA Alkaline Battery

Backup Unlocking Way

Mechanical Key & 9V Battery

Door Thickness

45-50 mm (standard)

50-65 mm (standard)

65-75 mm (standard)

75-90 mm (optional)

Gasket

Indoor unit

Installation Guide

Mechanical key

Mortise

Mounting plate

Screws for security door

Screws for wooden door

Spindles

Strike box

Strike plate

TL100

0.27 Mb Data Sheet
2015-11-09

TL100 User Manual

0.88 Mb User Manual
2015-11-09

TL100 Installation Guide

1.87 Mb Installation Guide
2015-11-09

TL100 Quick Start Guide

0.09 Mb Quick Start Guide
2015-11-09
