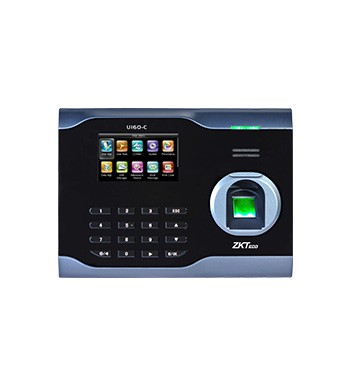

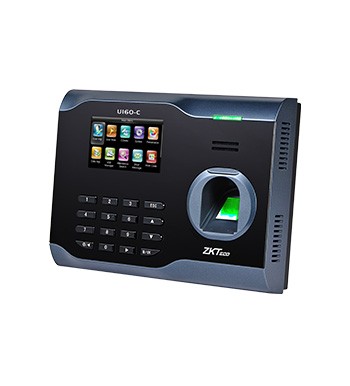

U160-C
- New stunning GUI
- Fast matching speed
U160-C offers unparalleled performance using an advanced algorithm for rreliable, precise, and excellent matching speed. The 3” TFT screen can display more information vividly, including fingerprint image quality and verification result, etc.
Remarkable user experience
- Intuitive and stunning UI designed with the most popular and internationalized element.
- Interface operation adopts modularized hierarchical design.
- Simpler, better and more logical.
- Faster matching speed: Less than 1 second.
- Great user interactivity.
Enhanced features and performance
- Multi-languages.
- Data backup and retrieve.
- Advanced User ID consisted of letters and numbers.
- Chip encryption for firmware protection.
- Compatibility with various types of USB flash disks, ADMS and former SDK.
Excellent expandability
- Easy to extend functions and customize customers’ requirements.
|
Fingerprint Capacity |
3000 templates |
|
Transaction Capacity |
100,000 |
|
Hardware Platform |
ZEM510 |
|
Sensor |
ZK Optical Sensor |
|
Algorithm Version |
ZK Finger v10.0 |
|
Communication |
RS232/485, TCP/IP,USB-host, USB-client |
|
Standard Functions |
Webserver, Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch |
|
Optional Functions |
ID/Mifare/HID,RIS,printer,9 digit user ID |
|
Display |
3 inches TFT Screen |
|
Power Supply |
5V DC 2A |
|
Operating Temperature |
0 ℃- 45 ℃ |
|
Operating Humidity |
20%-80% |
|
Dimension |
190X140X46 mm |
|
Gross Weight |
1.05 kg |
USB cable
Back Plate
Power adapter
RJ45 to RS485 2 pin cable
Screws
U160-C
0.63 Mb
Data Sheet
2015-11-09
