- New firmware
- New stunning GUI, rock-solid stability
- Faster matching speed

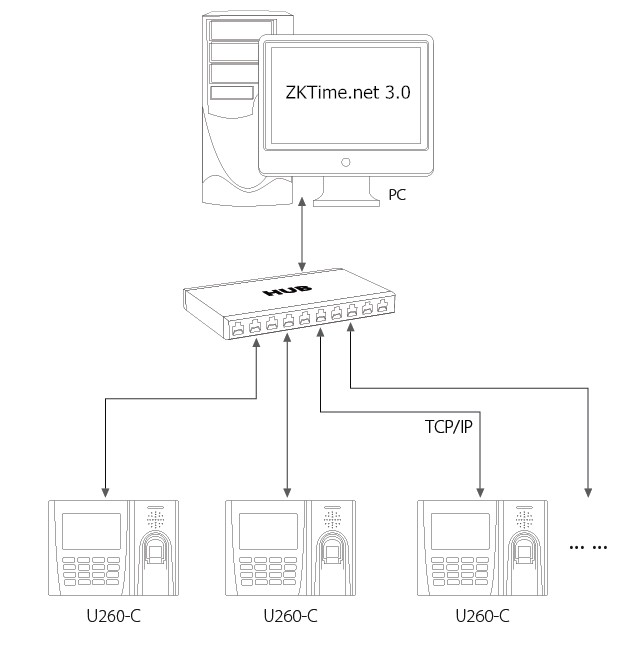

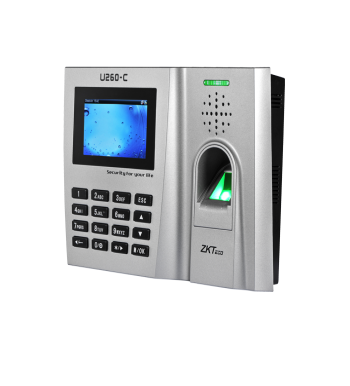

U260-C uses an advanced algorithm for reliable, precise, and excellent matching speed. Users can easily manage data by networking the device via RS232/485, TCP/IP, and USB client.
It supports data backup and retrieve to avoid the risk of accidental deletion.
．Color TFT screen with GUI Interface for ease of use
．ZK Optical Sensor
．1 touch a-second user recognition
．Stores 3,000 templates and 100,000 transactions
．Reads Fingerprint and/or PINs
．Optional integrated proximity or smart card reader
．Built-in Serial and Ethernet ports
．Built-in USB port allows for manual data transfer when network isn't available
．Multi Language Support
．Built in bell scheduling
．Real-time 1-touch data export 3rd party hosted & non-hosted applications
．Audio-Visual indications for acceptance and rejection of valid/invalid fingers
．SDK available for OEM customers and software developers
|
Fingerprint Capacity |
3000 |
|
ID Card Capacity |
10,000 (Optional) |
|
Record Capacity |
100,000 |
|
Display |
3-inch Screen |
|
Communication |
RS232/485, TCP/IP,USB-client |
|
Standard Functions |
Work code, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status Switch,T9 Input |
|
Optional Functions |
ID/Mifare/HID Cards, External Printer and Bell, ADMS, Photo ID, ADMS |
|
Software |
ZKTime. Net 3.0 |
|
Power Supply |
DC 5V 0.8A |
|
Verification Speed |
≤ 1 Sec. |
|
Operating Temp. |
0 °C- 45 °C |
|
Operating Humidity |
20%-80% |
|
Dimension |
192.3 × 138.8 × 42.7mm (Length × Width × Thickness) |
|
Gross Weight |
1.10 kg |
';
USB cable
Back Plate
Power adapter
RJ45 to RS485 2 pin cable
Screws
