- Color TFT screen with GUI interface for easy use
- New firmware

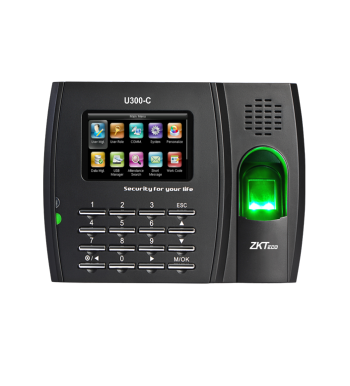

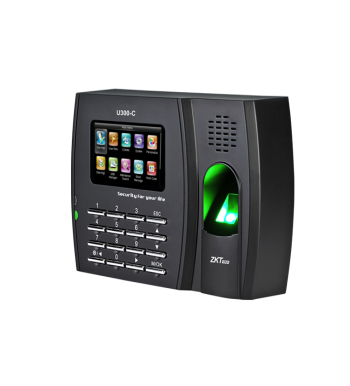

U300-C features the fastest commercial-based fingerprint matching algorithm with its high performance, high image quality optical fingerprint sensor. The 3-inch TFT can display more information vividly.
- Color TFT screen with GUI Interface for ease of use
- ZK Optical Sensor
- 1 touch a-second user recognition
- Stores 3,000 templates and 100,000 transactions
- Reads Fingerprint and/or PINs
- Optional integrated proximity or smart card reader
- Built-in Serial and Ethernet ports
- Built-in USB port allows for manual data transfer when network isn't available
- Multi Language Support
- Built in bell scheduling
- Real-time 1-touch data export 3rd party hosted & non-hosted applications
- Audio-Visual indications for acceptance and rejection of valid/invalid fingers
- SDK available for OEM customers and software developers
|
Fingerprint Capacity |
3000 |
|
ID Card Capacity |
10,000 (Optional) |
|
Record Capacity |
100,000 |
|
Display |
3-inch Screen |
|
Communication |
RS232/485, TCP/IP, USB-client |
|
Standard Functions |
SMS, Workcode, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input, 9 Digit User ID |
|
Optional Functions |
ID/Mifare/HID, Webserver, Photo ID, ADMS, External Bell and Printer, Multiple Verify Mode |
|
Software |
ZKTime.Net 3.0 |
|
Power Supply |
DC 5V 0.8A |
|
Verification Speed |
≤ 1 Sec. |
|
Operating Temp. |
0°C - 45°C |
|
Operating Humidity |
20% - 80% |
|
Dimension |
181.6×126×49mm (Length×Width×Thickness) |
|
Gross Weight |
1.2 kg |
';
USB cable

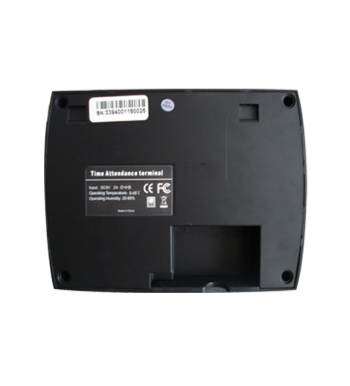

Back Plate
Power adapter
RJ45 to RS485 2 pin cable
Screws
