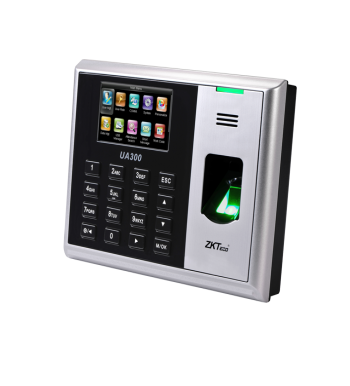

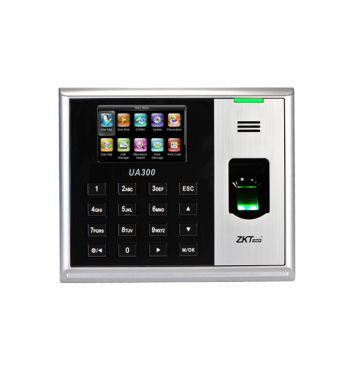

UA300
- New firmware
- Stunning GUI, rock-solid stability
- Fast matching speed

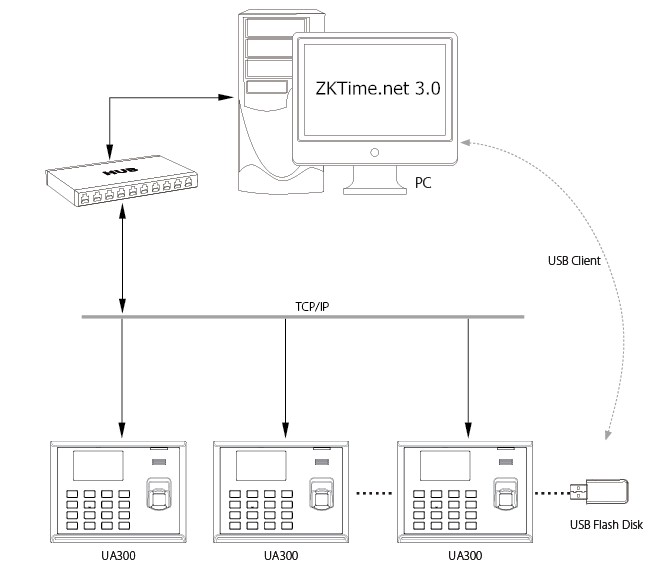

Users can easily manage data by networking UA300 via RS232/485, TCP/IP, USB Client. Most importantly, all the functions can still operate in a networking state.
- Intuitive and stunning UI designed with the most popular and internationalized factor.
- Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
- Faster matching speed: less than 1 second.
- Easy to extend functions and customize customers’ demand.
- Support user validity settings.
- Support data backup and retrieve.
- Support advanced Workcode consisted of letters and numbers.
- Support chip encryption for firmware protection.
- Support more flexible menu configuration: double line text display.
- Support external printer for attendance records output (Optional).
|
Fingerprint Capacity |
3000 (1:N) |
|
ID Card Capacity |
10,000 (Optional) |
|
Record Capacity |
100,000 |
|
Display |
3-inch Screen |
|
Communication |
TCP/IP, RS232/485, USB client |
|
Standard Functions |
Web Server, SMS, Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 Digits User ID, DST, Schedule Bell |
|
Optional Functions |
ID/Mifare Card, External Printer and Bell, Photo ID, ADMS |
|
Software |
ZKTime. Net 3.0 |
|
Power Supply |
DC 5V 0.8A |
|
Verification Speed |
≤ 1 sec |
|
Operating Temp. |
0 °C- 45 °C |
|
Operating Humidity |
20%-80% |
|
Dimension |
180 × 135 × 37 mm (Length × Width × Thickness) |
|
Net Weight |
0.70 kg |
';
USB cable

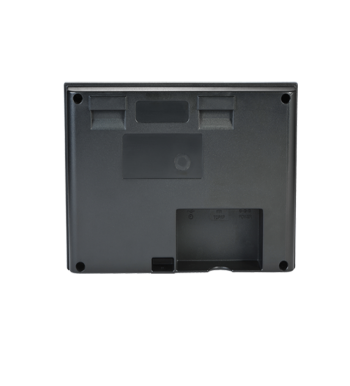

Back Plate
Power adapter
RJ45 to RS485 2 pin cable
Screws
UA300
0.64 Mb
Data Sheet
2015-11-09
