VF700
  • Face/Card/Password verification
  • Wi-Fi, Ethernet communication.
  • Face Capacity: 800(Standard)/1200(Optional)(1:N)

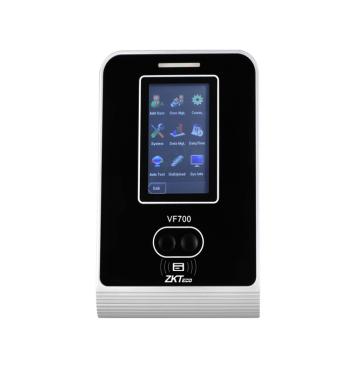

VF700 is a face identification T&A terminal with face, PIN and RFID recognition modes.

With the latest face identification algorithm and streamlined technology, it can hold 800 face templates without dividing into groups and complete verification in less than 1 second.

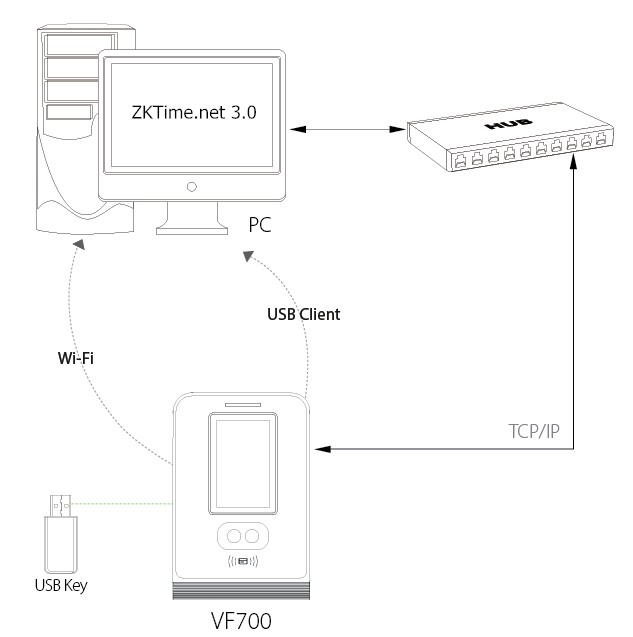

Communicating via Wi-Fi(Optional), TCP/IP, and USB clien/host, it can ensure a smooth connection and data transfer. All the settings can be easily done on 3-inch touch screen.

  • Elegant ergonomic design.
  • Wi-Fi (Optional), TCP/IP, and USBclient/hostcommunication.
  • 3-inch touch screen, T9 Input, and 9 Digit User ID.
  • Infra-red optical system enables user-identification in poorly lit environment.
  • Optional Mifare card module.
  • Professional face identification algorithm.

Display

3-inch Touch Screen

Face Capacity

800(Standard)/1200(Optional)(1:N)

ID Card Capacity

10,000

Logs Capacity

100,000

Communication

TCP/IP, USB client and USB host

Standard Functions

ID card,Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Scheduled-bell, SMS and Photo ID

Optional Function

Mifare Card, Wi-Fi

Power Supply

12V/1.5A

Verification Speed

≤1 sec

Operating Temperature

0-45 °C

Operating Humidity

20%-80%

Dimensions

104.7 × 160 × 36 mm (L × H × D)

';

USB cable

Back Plate

Electric wire intake box

Measuring tape

Mounting paper

Power adapter

Screw driver

Screws

Touch pen

VF700

0.45 Mb Data Sheet
2015-09-09

VF700 Quick Start Guide

0.84 Mb Quick Start Guide
2015-09-09
