WL10
  • Wi-Fi, USB client & host
  • Ultra-thin design
  • Stable operation under strong light source

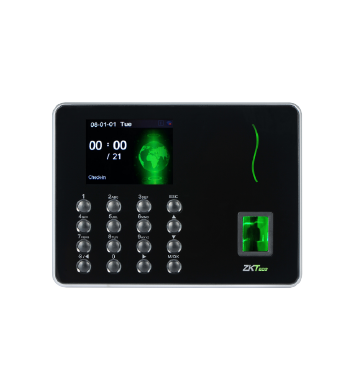

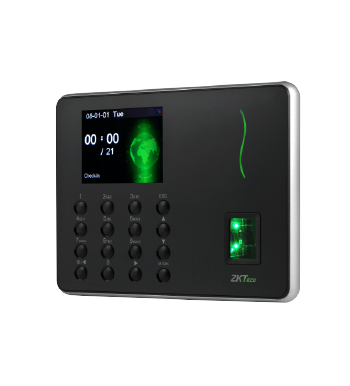

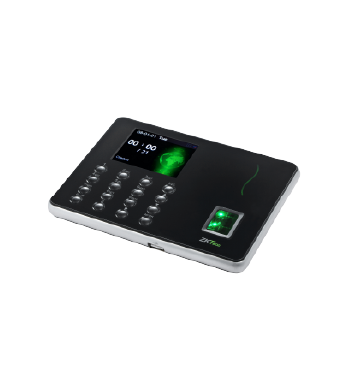

WL10 is Fingerprint Time & Attendance Terminal with Wi-Fi module. With Wi-Fi function, User needn’t wire Ethernet cable, it supports hotspot mode and allow mobile APPs connection and check in/out and download record directly. It’s associated with ZK new fingerprint reader, the operation remains stable under strong light source and high preciseness of verification of wet and rough fingers. It also has elegant design and slim sharp, it will start new stage of time attendance.

  • Wi-Fi, USB client & host
  • Ultra-thin design
  • Stable operation under strong light source
  • Infrared auto-turning on function to save power
  • Quick recognition of dry, wet and rough fingers
  • Time Cube Cloud Solution
  • Mobile phone APP TA Assistant download report and shift Management
  • Build-in SSR Excel software, Shift and Report management
Fingerprint Capacity                                                                                          1000 / 1500 (without SSR)
Finger Algorithm ZKFinger VX10.0
Record Capacity 50,000
Display 2.8-inch TFT Screen
Communication Wi-Fi , USB-Host, USB-Client
Standard Functions

SSR, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input
9 digit user ID
Optional Functions

TA Assistant APP
Time Cube Cloud Solution
Power Supply DC 5V 0.8A
Operating Temp 0 °C- 45 °C
Operating Humidity 20%-80%
Dimension 168 x 125 x 22.5 mm
';

WL10

3.43 Mb Data Sheet
2017-04-20

WL10 - User Manual

3.72 Mb User Manual
2017-04-20

WL10 - Quick Start Guide

0.9 Mb Quick Start Guide
2017-04-20

WL10 - Quick Start Guide for the Self-Service Attendance Terminal V4.1

0.94 Mb Quick Start Guide
2017-04-20
