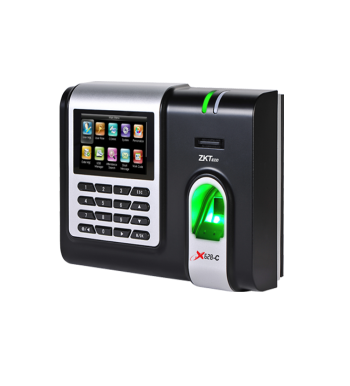

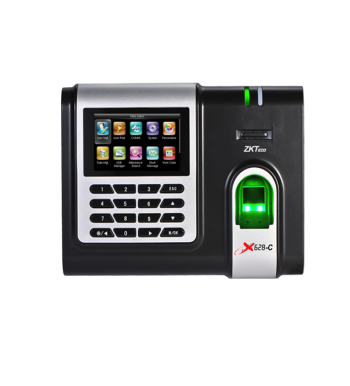

X628-C
  • New firmware
  • Multi-communication mode

X628-C offers unparalleled performance by using and advanced proprietary matching algorithm which is reliable, precise, and has the fastest fingerprint matching speed.

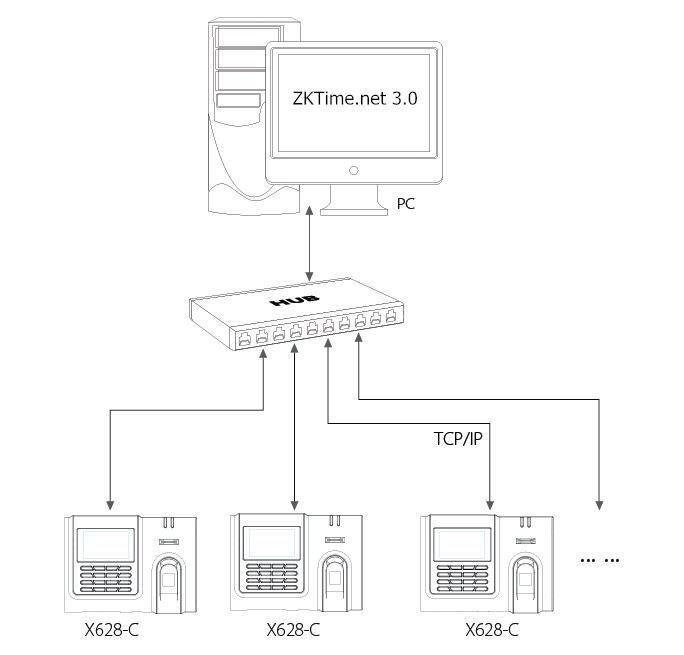

X628-C comes standard with TCP/IP and RS232 communication ports. An optional USB port allows administrator to transfer date when network isn’t available.

.Color TFT screen with GUI Interface for ease of use

.ZK Optical Sensor

.1 touch a-second user recognition

.Stores 3,000 templates and 100,000 transactions

.Reads Fingerprint and/or PINs

.Optional integrated proximity or smart card reader

.Built-in Serial and Ethernet ports

.Built-in USB port optional, allows for manual data transfer when network isn't available

.Multi Language Support

.Built in bell scheduling

.Real-time 1-touch data export 3rd party hosted & non-hosted applications

.Audio-Visual indications for acceptance and rejection of valid/invalid fingers

.SDK available for OEM customers and software developers

Fingerprint Capacity

3000

ID Card Capacity

10,000 (Optional)

Record Capacity

100,000

Display

3-inch Screen

Communication

RS232/485, TCP/IP,USB-host

Standard Functions

Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, Webserver, External Printer, 5 digit user ID, Multiple Verify Mode

Optional Functions

ID/Mifare/HID, Photo ID, ADMS, Webserver, External Bell and Printer

Software

ZKTime. Net 3.0

Power Supply

DC 5V 0.8A

Verification Speed

≤ 1 Sec.

Operating Temp.

0 °C- 45 °C

Operating Humidity

20%-80%

Dimension

190 × 135.8 × 51.5mm (Length × Width × Thickness)

Net Weight

0.9 kg

';

Back Plate

Power adapter

Screw driver

Screws

USB cable
