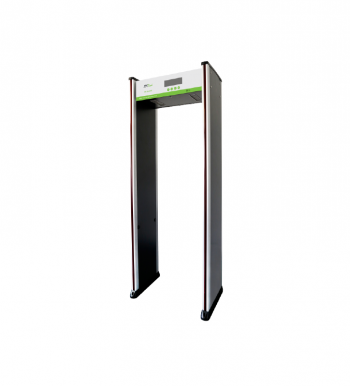

ZK-D2180S
  • Eighteen mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
  • Small LCD screen, English operating software, easy to operate.
  • Sensitivity adjustable: Each zone has 256 sensitivity level
  • Eighteen mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
  • Small LCD screen, English operating software, easy to operate.
  • Sensitivity adjustable: Each zone has 256 sensitivity level
  • Sound & LED alarm: Both Side LED indicator, easily show where the metal is.
  • Automatically count passengers and alarm times
  • Alarm strength indicator on control panel
  • Password protection, only the authorized person can operate.
  • Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
  • Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  • Using high density fireproof material
  • Program Self-diagnostic when power on,no need initial or periodic calibration
  • Modularization design,easy for maintenance and replacement.

   • 4-8 hours backup battery (Option)

Power Supply

AC85 V-264 V

Working temperature

-20℃--+50℃

Working Frequency

4KHZ—8KHZ

Standard External size

2200mm(H)X800mm(W)X580mm(D)

Standard Internal size

2010mm(H)X700mm(W)X500mm(D)

Package size for door panels

2260*650*260mm *1ctn

Package size for control unit

780*390*250 mm*1ctn

Gross weight

70KG

ZK-D2180S

1.41 Mb Data Sheet
2016-07-17

ZK-D2180S User Manual

1.98 Mb User Manual
2016-07-17

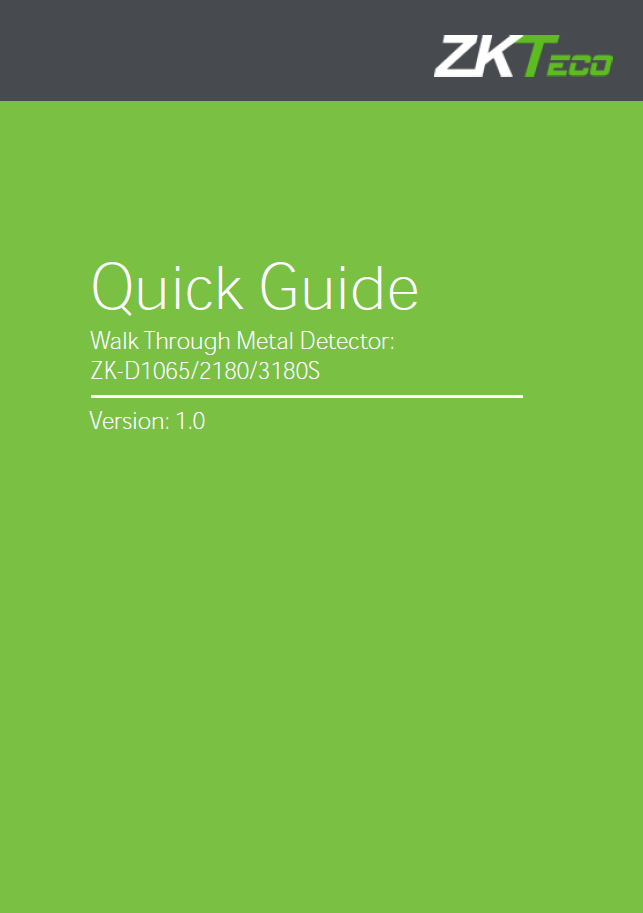

ZK-D2180S Quick Guide

0.02 Mb Quick Start Guide
2016-07-17

ZK-D2180S Selection Guide

0.04 Mb Installation Guide
2016-07-17
