- Multi-biometric reader with finger vein and fingerprint authentication
- Unsurpassed performance with highly accurate finger vein recognition technology

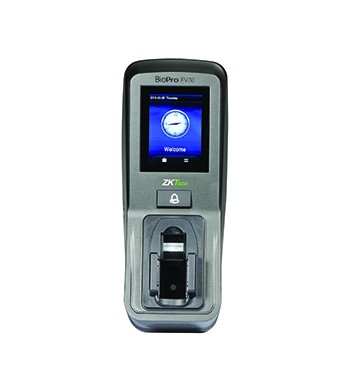

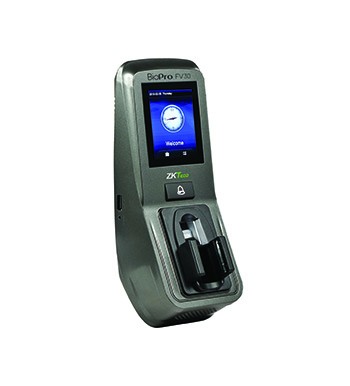

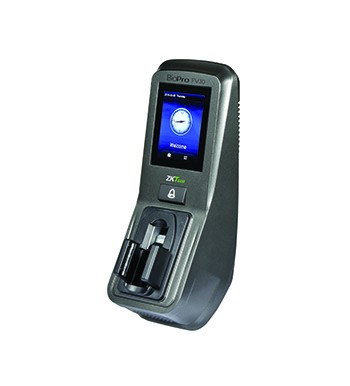

BioPro FV30 is a multi-biometric reader capable of capturing and processing finger vein and fingerprint biometric data at the same time. Ergonomic, intuitive and highly secured, BioPro FV30 leads us to a new era of enhancing security with biometrics. Its infra-red rays illuminates the vein pattern which is then converted into a biometric template. Both the vein and fingerprint templates are then stored in the database for subsequent matching.
- Multi-biometric reader with finger vein and fingerprint authentication
- Unsurpassed performance with highly accurate finger vein recognition technology
- Intuitive graphical user interface and touch screen display for rich user experience
- Can store upto 1000 vein and 1000 fingerprints and identify in less than 2 seconds
- Complete built in Access Control functionality and can operate without a dedicated computer.
- Flexibility to use any of the three credentials i.e. finger vein, fingerprint and password
- Advanced access control functions based on time zones, groups and unlock combinations
|
Core board |
ZMM220 |
|
CPU |
1.2GMHz |
|
Communication |
TCP/IP, RS485 |
|
Vein Capacity |
1,000 |
|
Fingerprint Capacity |
1,000 |
|
RF Card |
EM, Mifare (optional 2,000) |
|
Authentication |
Finger vein, fingerprint, password, card (optional) |
|
Auxiliary terminal |
1 Aux. input |
|
Wiegand |
Wiegand in and out |
|
Display |
2.8-inch capacitive screen |
|
Operating Voltage |
DC 12V 3A |
|
Operating Temperature |
-10°C ~ 45°C |
|
Dimensions |
232mm×91mm×117mm(length×width×thickness) |
|
SDK |
PULL SDK (new firmware) |
';
Installation Guide
Cables
Diode (FR107)
Power adapter
Screw driver
