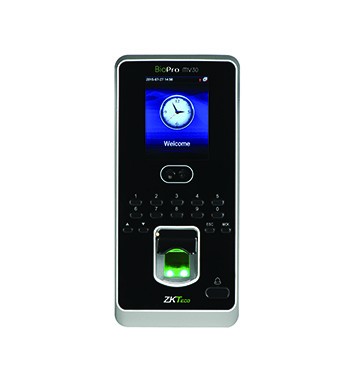

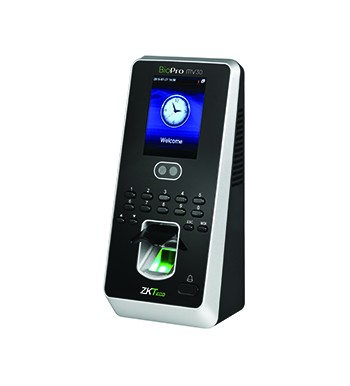

BioPro MV30
  • A time attendance and access control terminal for face and fingerprint verification
  • Multiple Verification Modes
  • Full Access Control Features

BioPro MV30 is a time attendance and access control terminal for face and fingerprint verification. Using ZK latest ZKFACE 7.0 highspeed face recognition algorithm, it has extremely high verification speed and low error rate, and is able to effectively prevent duplicated registration.

With its high-resolution infrared night vision light and professional color duo camera, the terminal can carry out quick verification in any environment. What is more, it supports face, fingerprint, user ID, password, RFID card (optional) and various combination methods, in order to satisfy the demands of different users. Moreover, the TCP/IP communication supports connection across internet segments. Its auxiliary input function can be used for linking to Fire Alarm.

  • 2.8-inch color display with graphical UI for easy operation
  • Effectively prevent duplicated face registration
  • Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

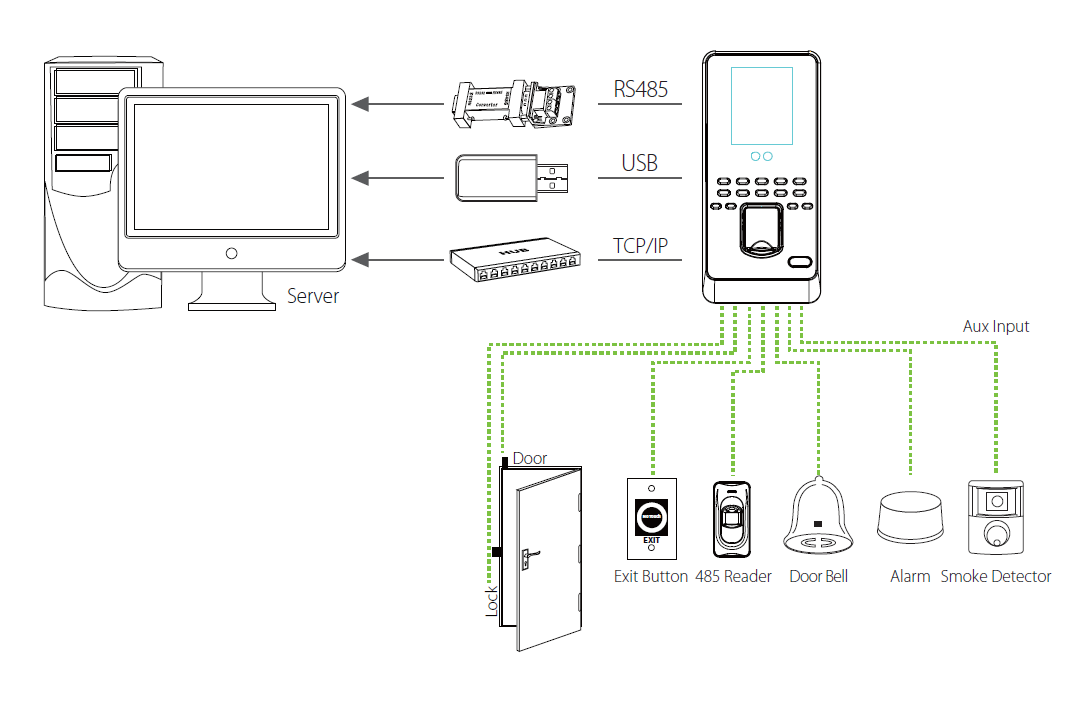

  • Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
  • Good Performance in Dark Environment, Infrared optical system enables machine to work well at night
  • Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

Display

2.8 inch TFT LCD Color Screen

Face Capacity3

3,000 (1:N)

Fingerprint Capacity

4,000 Templates

Card Capacity

10,000 (Optional) ID or Mifare card

Transaction Capacity

100,000 Transactions

Algorithm Version

ZKFinger VX10.0 & ZKFace VX7.0

Communication

RS485, TCP/IP, USB-host

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell, Wiegand In/Out

Aux. Input

1ea for linkage function

Standard Function

DST, Automatic Status Switch, Anti-passback, Scheduled-Bell, PhotoID, ADMS

Power Supply

12V DC,3A

Operating Temperature

0 °C- 45 °C

Operating Humidity

20%-80%

';

Cables

Diode (FR107)

Installation Guide

Screw driver

Screws

BioPro MV30 Quick Start Guide

1.08 Mb Quick Start Guide
2015-12-07

BioPro MV30 User Manual

6.76 Mb User Manual
2015-12-07

BioPro MV30

0.32 Mb Data Sheet
2017-04-16
