- Revolutionary SilkID Fingerprint Sensor
- Modern Design & Interactive UI

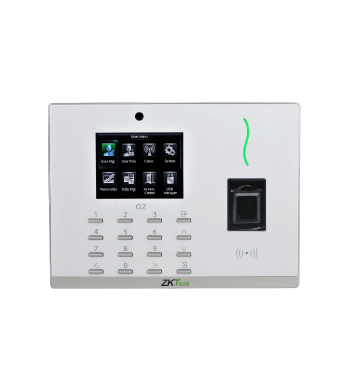

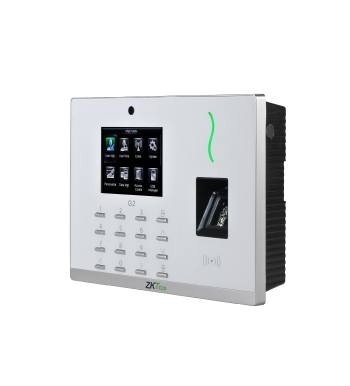

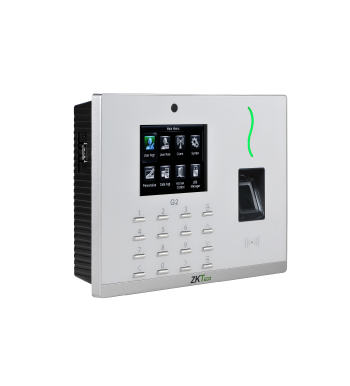

G2 fingerprint identification terminal features ZKTeco’s innovative Silk ID fingerprint sensor. With 3D Neuron Fingerprint Verification Sensor-Activation and Anti-Interference technology, it precisely detects dry, wet, and rough fingerprints, and operates well under strong sunlight environment. With the latest core-board, the fingerprint capacity is enlarged to 50,000.
• Modern Design & Interactive UI
• Revolutionary SilkID Fingerprint Sensor
• Optional Wi-Fi or 3G
• Multiple Verification Modes:
• Fingerprint / Card / Password
• Outstanding Performance With Dry, Wet and Rough Fingers
|
Fingerprint Capacity |
50,000 |
|
Card Capacity |
50,000 |
|
Transaction Capacity |
200,000 |
|
Communication |
TCP/IP, USB Host / Client, Wiegand Input / Output |
|
Hardware |
1.2GHz Dual Core CPU, Memory 128MB RAM / 256MB Flash, SilkID Fingerprint Sensor, 3.5 Inches TFT-LCD Screen, Hi-Fi Voice & Indicator, Tamper Switch Alarm |
|
Standard Functions |
ID Card, Work Code, ADMS, DST, SMS, Bell Schedule, Attendance Status Auto-Switch, Record Query, Photo ID, Anti-Passback, Custom Wallpaper & Screen Saver |
|
Optional Functions |
HID / Mifare Card Reader, External Printer , Wi-Fi / 3G |
|
Special Functions |
Multiple Verification Modes, Alive Finger Detection |
|

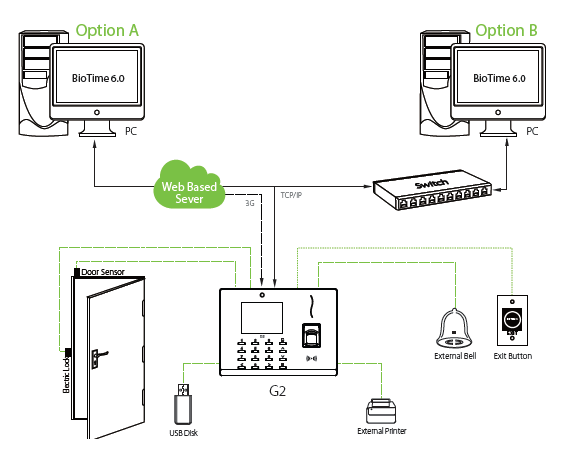

Access Control Interface |
Lock Relay Output, Alarm Output, Exit Button, Door Sensor, External Bell Output |
|
Compatibility |
BioTime 6.0 |
|
Working Temperature |
0 °C ~ 45 °C |
|
Dimensions |
206.0 × 153.0 × 42.9 mm |
|
Fingerprint Algorithm |
ZKFinger v10.0 |
|
Power |
Operating Voltage 12V DC, Current Draw < 500 mA |
';
Mounting Plate
Power Adapter Cable
Power Adapter
Screw Driver
Screws
