MA300-BT
  • Rugged Structure and Extra Durability
  • Metallic Casing

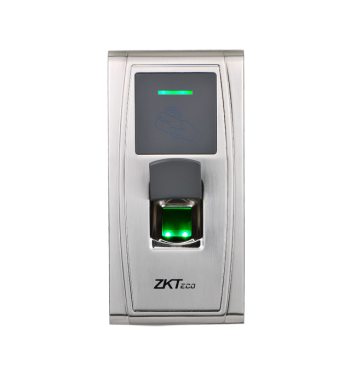

MA300, one of the innovative biometric fingerprint readers for access control applications. Offering unparalleled performances by adopting an advanced ZK fingerprint algorithm for reliability, precision and excellent matching speed.

It is metallic casing and IP65 rated which enables it to be resistant from water, dust and other outside damages.

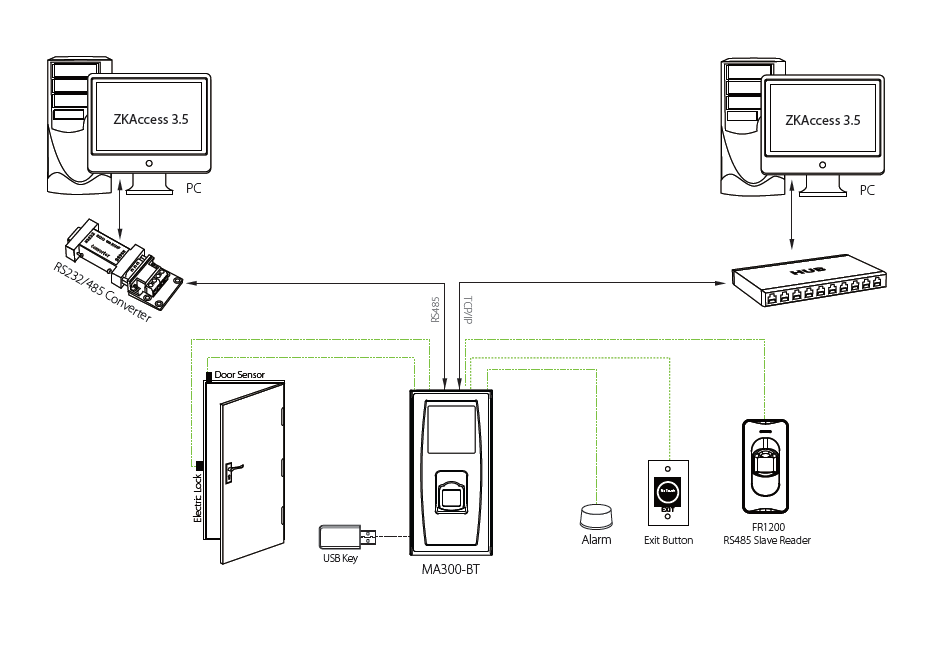

MA300 offers the flexibility to be installed standalone or with any third party panels that support 26-bit wiegand. User can be enrolled by the administrator card when the device works in standalone mode.TCP/IP and RS485 are available, so that the device can be connected easily and conveniently.

It supports Bluetooth communication , mobile phone App management, And realizes access control ,user information registration, devices setting up.

• Rugged Structure and Extra Durability

IP65 rated waterproof and dustproof structure

• Fast and Accurate Fingerprint Algorithm

1 touch a-second user recognition.

Store 1,500 fingerprint templates, 10,000 cards and 100,000 transactions.

• Easy Installation and Connectivity

Wiegand input & output.

Network interface by TCP/IP or RS485

• Metallic Casing

Vandal-proof for outdoor installation

• Full Access Control Features

Anti-passback.

Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell

• Bluetooth Communication

Mobile phone App Management

Access control , user information registration and devices setting up

Fingerprint Capacity

1,500 templates

ID Card Capacity

10,000

Transaction Capacity

100,000

Hardware Platform

ZEM720

Sensor

ZK Optical Sensor

Algorithm Version

ZKFinger V10.0

Communication

RS485,TCP/IP,USB-host,Bluetooth

Access Control Interfaces for

3rd party electric lock, door sensor, exit button, alarm

Wiegand Signal

Input & Output

Standard Access Control Function

RS485 Reader, Time Zone, Group, Multi-identification, Duress mode, Anti-passback

Optional Functions

Mifare, external USB keypad

Display

N/A

Power Supply

12V DC

Operating Temperature

-10 °C- 60 °C

Operating Humidity

10% -90%

Protection Grade

IP65

Dimension(W×H×D)mm

73×148×34.5

Gross Weight

1.15kg

';

MA300-BT

0.76 Mb Data Sheet
2017-03-01
