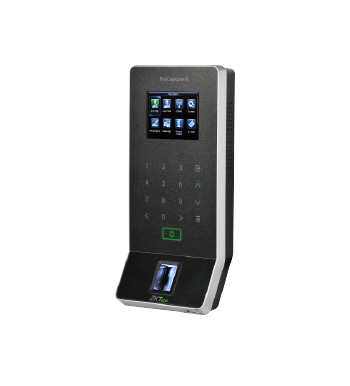

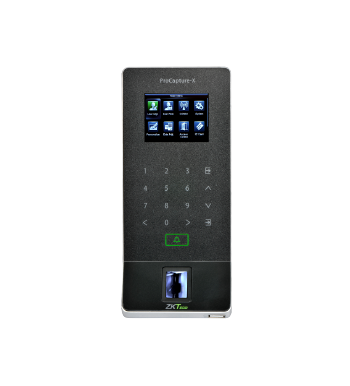

ProCapture-X
  • POE Fingerprint Access Control Terminal
  • Revolutionary SilkID Fingerprint Sensor
  • Multiple Verification Modes: Fingerprint / Card / Password
  • Outstanding Performance With Dry, Wet and Rough Fingers

ProCapture-X is a POE fingerprint access control terminal with the most advanced SilkID technology, which not only possesses outstandingly high identification rate towards dry, wet and rough finger, but also provides the utmost security with its live finger detecting capability. The device is designed in horizon style design and is equipped with touch keypad, which provides a superior touching experience. It also offers flexibility standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi (Optional) are available that the device can be used in different networks.

  • Modern Design & Interactive UI
  • Revolutionary SilkID Fingerprint Sensor
  • Multiple Verification Modes: Fingerprint / Card / Password
  • Outstanding Performance With Dry, Wet and Rough Fingers
  • Wireless Network* Wi-Fi Connection

Fingerprint Capacity

20,000

Card Capacity

50,000

Transaction Capacity

500,000

Communication

TCP/IP, RS485 (For Fingerprint & Card Reader), USB-Host, Wiegand In/Out, Wi-Fi (Optional)

Hardware

1.2GHz High Speed CPU, Memory 128MB RAM / 256MB Flash, SilkID Fingerprint Sensor, 2.4inches TFT-LCD Screen, 125kHz EM Reader/Mifare (Optional), Hi-Fi Voice & Indicator, Tamper Switch Alarm, Touch Keypad, POE (Standard IEEE 802.3at), Wireless doorbell (Optional)

Standard Functions

Access Levels/Groups/Holidays, DST/Bell Schedule, Duress Mode, Anti-Passback, Record Query, Custom Wallpaper & Screen Saver

Special Functions

Multiple Verification Modes, Alive Finger Detection, ZK Encrypted Card (Optional)

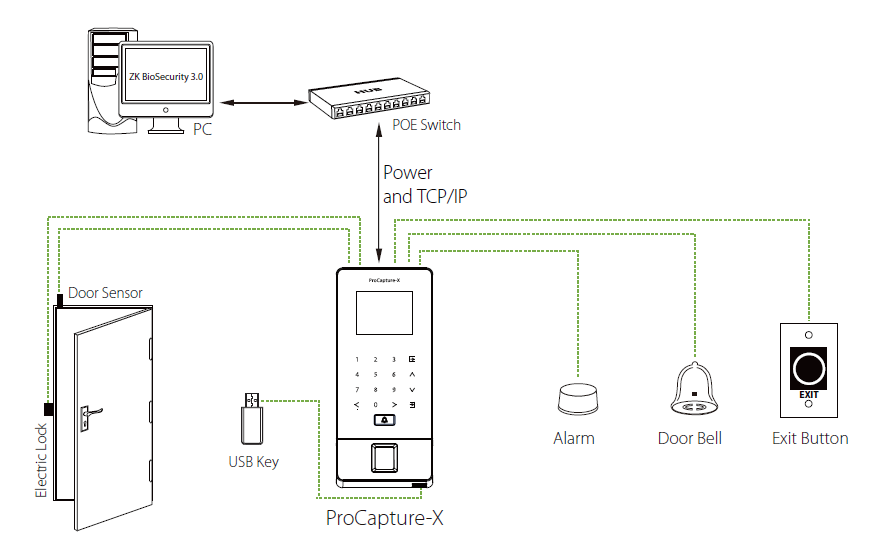

Access Control Interface

Lock Relay Output, Alarm Output/Auxiliary Input, Exit Button, Door Sensor, Security Relay Box

Compatibility

Wiegand Slave Reader, RS485 Slave Reader, ZKBiosecurity Software

Working Temperature

0 °C ~ 45 °C

Dimensions

200.5 x 88.5 x 28.7 mm

Fingerprint Algorithm

ZKFinger v10.0

Fingerprint

FAR≤0.0001%, FRR≤0.01%

Operating Voltage

12VDC, 3A

Current Draw

<500mA

';
