- New firmware device Excellent Expandability
- Card non-touch verification device

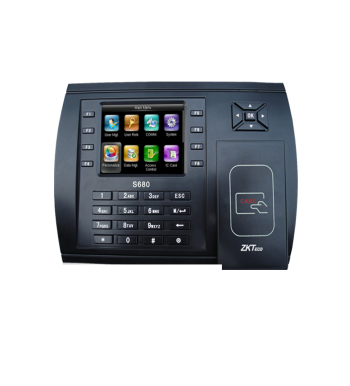

S680 is an RFID Time & Attendance and Access Control Terminal with 3.5’’ TFT LCD.

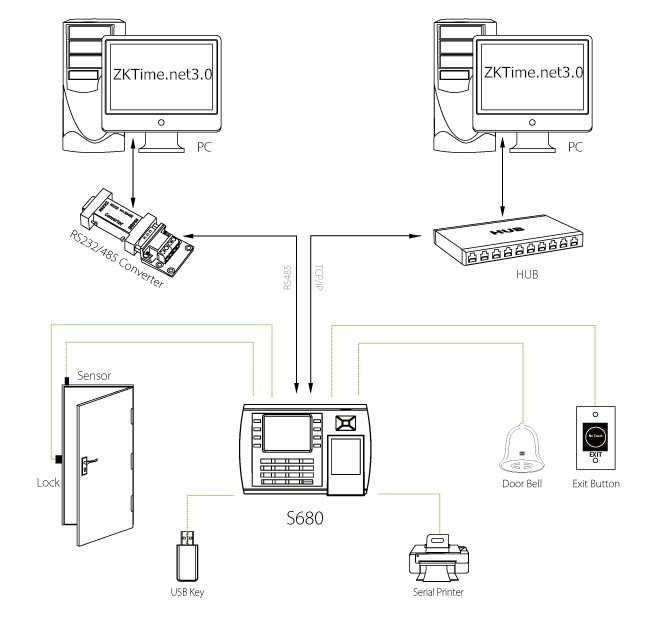

With the adoption of the brand new firmware and the latest core board platform, S680 perfected its user-friendly interface and identification speed, it can also control the door and connect with 3rd party electric lock, door sensor, and exit button, etc.
Remarkable User Experience
- Intuitive and stunning UI design.
- Interface operation adopts modularized hierarchical design.
- Simpler, better and more logical.
- Great user interactivity.
Enhanced Features and Performance
- Multi-languages.
- Data backup and retrieve.
- Chip encryption for firmware protection.
Excellent Expandability
- Easy to extend functions and customize customers' requirements.
|
ID Card Capacity |
10,000 |
|
Record Capacity |
50,000 |
|
Display |
3.5-inch TFT Screen |
|
Communication |
TCP/IP, RS232/485, USB (host and client) |
|
Standard Functions |
ID Card, Workcode, SMS, DST, Self-Service Query, AutomaticStatus Switch, Scheduled-bell, Photo ID, Anti-passback |
|
Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
|
Optional Functions |
Mifare/HID, GPRS, Wi-Fi, 3G, Webserver, ADMS, Multiple Verify Mode, External Printer |
|
Wiegand Sigal |
Input & Output |
|
Software |
ZKTime.Net 3.0 |
|
Power Supply |
DC 12V 1.5A |
|
Verification Speed |
≤ 1 Sec. |
|
Operating Temp. |
0°C- 45°C |
|
Operating Humidity |
20% - 80% |
|
Dimension |
204.99×145.00×47.45mm (Length×Width×Thickness) |
';
1.5m USB cable
Back Plate
Wires
Mounting paper
Power adapter cable
Power adapter
Screw driver
Screws
